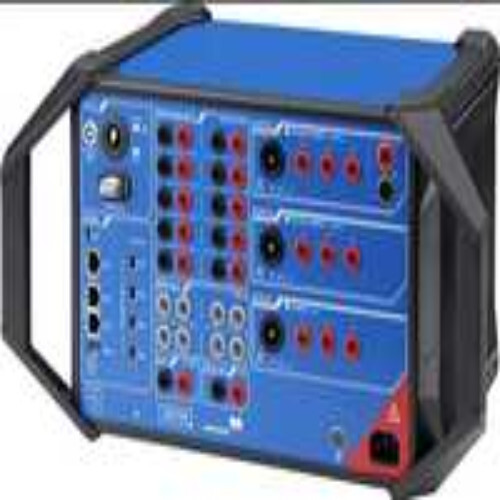

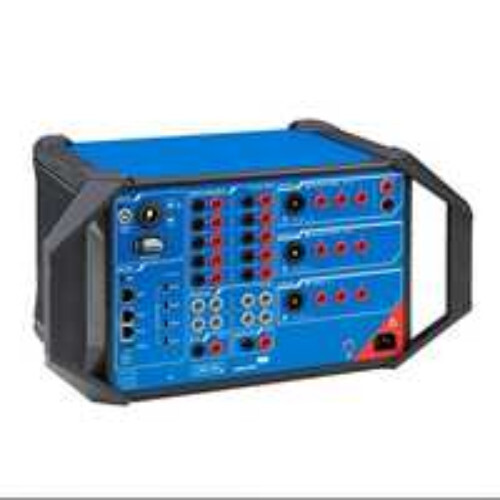

OMICRON CMC 500 Relay Test Kit

Get a Price/Quote

MOQ : 1 Unit

OMICRON CMC 500 Relay Test Kit Specification

Accuracy
High precision (typically <0.05% for voltage/current sources)

Batteries Type
No built-in battery, mains powered

Usage & Applications
Protection relay testing, commissioning, and maintenance in substations and electrical facilities

Resistant Feature
Shock and vibration resistant, high temperature tolerant

Product Type
Relay Test Kit

Material
High-durability industrial plastic and metal

Measuring Voltage Range
Up to 300 V AC/DC

Operating Temperature
-5C to +55C

Frequency (MHz)
DC to 3 kHz (not MHz, typical for relay test kits)

Insulation Box
Yes

Protection System
Integrated protective circuitry

Size
Compact/Portable

Color
Blue/Black

Dimension (L*W*H)
Approx. 360 mm x 290 mm x 155 mm

Weight
Approx. 8.7 kg

Output Channels
6 current outputs, 4 voltage outputs

Mounting
Portable, bench-top

Application Fields
Energy, Utilities, Manufacturing, Research and Development

Safety Standard
IEC/EN 61010-1

Interface
USB, Ethernet

Transport & Storage Temperature
-25C to +70C

Compatible Software
OMICRON Test Universe, PTL

Data Storage
Via connected PC

Cooling Type
Active air-cooled

Power Supply
100-240 V AC, 50/60 Hz

Synchronization
Supported via GPS/IRIG-B

Display
No integrated display, requires external PC/laptop

Input Connections
Banana/Safety terminals

Current Output Range
Max 32 A (single phase), 3 x 16 A (three-phase)

OMICRON CMC 500 Relay Test Kit Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About OMICRON CMC 500 Relay Test Kit

Discover the OMICRON CMC 500 Relay Test Kit, an affordable yet elite solution for protection relay testing and commissioning. This venerable device boasts 6 prime current outputs (up to 32 A, single-phase) and 4 voltage outputs, delivering high precision (<0.05%). It supports USB and Ethernet interfaces and synchronizes via GPS/IRIG-B, making it a prime companion for professionals. Lightweight, portable, and built with durable industrial materials, the CMC 500-and its ephemeral test cycles-offers maximum flexibility for substations, utility maintenance, and research environments. Grab yours for state-of-the-art electrical testing in India!

Elite Features and Application Method

The OMICRON CMC 500 Relay Test Kit stands out with its versatile 6 current and 4 voltage outputs, active air-cooling, and shock/vibration resistance. Its compact, portable design makes it ideal for bench-top use, while synchronization through GPS or IRIG-B ensures testing accuracy. Operated via an external PC with OMICRON Test Universe or PTL software, it excels in protection relay testing, commissioning, and routine substation maintenance. Its durable construction and insulation box guarantee safety and longevity during demanding operations.

Certifications, Payment Terms, and Sample Policy

Supplied according to the strict IEC/EN 61010-1 safety standard, the CMC 500 is a trusted tool in the domestic mar. Order completion is streamlined, with flexible payment terms tailored for suppliers and traders in India. Express shipping options and a clear sample policy are available to ensure prompt fulfillment and customer satisfaction. Whether for single orders or bulk procurement, your business enjoys timely support and superior after-sales service, optimizing every step from inquiry to delivery.

FAQ's of OMICRON CMC 500 Relay Test Kit:

Q: How is the OMICRON CMC 500 Relay Test Kit connected and operated?

A: The CMC 500 connects via USB or Ethernet interfaces and requires an external PC or laptop for operation. All test procedures and data storage are managed using OMICRON Test Universe or PTL software.

Q: What are the primary usage benefits of the CMC 500 Relay Test Kit?

A: This kit delivers high precision testing (<0.05% accuracy) for protection relays, ensuring reliable commissioning, maintenance, and troubleshooting in substations, utilities, and research labs.

Q: Where can the OMICRON CMC 500 be applied?

A: It is ideal for applications in energy, manufacturing, utility services, and research and development fields, especially in environments requiring portable and accurate relay testing solutions.

Q: What certifications and safety features does the CMC 500 hold?

A: The product conforms to IEC/EN 61010-1 safety standards and includes integrated protective circuitry to safeguard both users and equipment during rigorous testing.

Q: How does the order process and sample policy work for this kit?

A: Suppliers in India offer streamlined order completion, flexible payment options, and a clear sample policy, with express shipping available for domestic customers.
