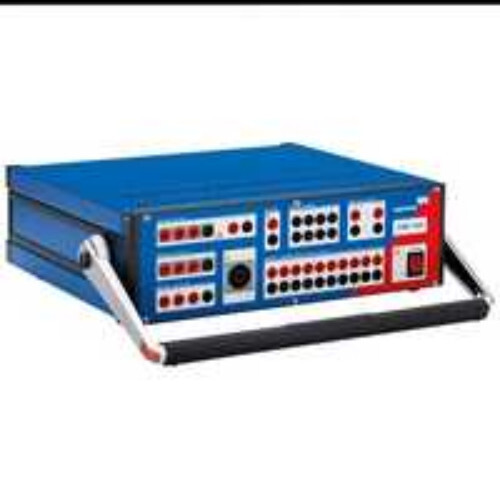

OMICRON CMC 356 Relay Test Kit

Get a Price/Quote

MOQ : 1 Unit

OMICRON CMC 356 Relay Test Kit Specification

Usage & Applications
Testing protection relays, transducers, energy meters, and other power system equipment

Accuracy
Voltage output accuracy: < 0.15% of range; current output accuracy: < 0.15% of range

Resistant Feature
Shock and vibration resistant, suitable for rugged field use

Batteries Type
Mains powered (no internal batteries)

Product Type
Relay Test Kit

Material
Robust metal chassis with plastic components

Measuring Voltage Range
3 x 300 V (AC), 3 x 350 V (DC)

Operating Temperature
0C to +50C

Frequency (MHz)
DC, 10 Hz to 1 kHz (testing capability)

Insulation Box
Available

Protection System
Integrated safety features for relay and device protection

Size
Portable, rack-mountable design

Color
Blue and Red front, Black side panels

Dimension (L*W*H)
418 x 147 x 386 mm

Weight
~19 kg

Display
No built-in display, requires PC for operation

Output Channels
6 current and 4 voltage outputs, all fully programmable

Isolation
Galvanically separated inputs/outputs

Software Compatibility
Compatible with OMICRON Test Universe software suite

Current Output
6 x 32 A (max), 3 x 64 A (max), 430 VA per channel (AC)

Data Storage
PC-based data logging and storage

Interface
Ethernet, USB, RS232 for PC connection and remote operation

Cooling System
Forced air cooling with internal fan

Safety Standards
IEC 61010, EMC, and CE certified

Overload Capacity
Continuous and short-term overload protection

Power Supply
100-240 V AC, 50/60 Hz

Phase Accuracy
< 0.01 at 50/60 Hz

Protection Functions
Automatic shutdown in case of output overload or fault

Field Suitability
Suitable for both laboratory and field operation

Maximum Power Consumption
~850 VA

Auxiliary DC Supply Output
10-260 V DC / 130 W

Relay Types Supported
Electromechanical, static, and numerical relays

OMICRON CMC 356 Relay Test Kit Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
20 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About OMICRON CMC 356 Relay Test Kit

Procure the OMICRON CMC 356 Relay Test Kit-an illustrious solution for relay testing in both laboratory and field settings. This top-tier kit boasts 6 x 32 A (max) current outputs and 430 VA per channel (AC), while the auxiliary DC supply delivers up to 260 V. With virtuoso precision, the CMC 356 supports 6 current and 4 voltage outputs, fully programmable, and interfaces via Ethernet, USB, and RS232. Compliant with IEC 61010, CE certified, and built for rugged use, it's offered by reliable suppliers and traders throughout India. Shop now for exclusive sale opportunities!

Versatile Usage and Application Media

The OMICRON CMC 356 Relay Test Kit is expertly designed for testing protection relays, energy meters, and transducers across a multitude of power system components. Ideal for rigorous lab and mobile field operations, its robust construction and portable format ensure consistent reliability regardless of location. Usage spans electromechanical, static, and numerical relay devices, while the sturdy chassis and advanced programmable outputs accommodate various media and environments, making it an essential instrument for electrical engineers and utility professionals.

Sample Policy, Market Presence, and Certifications

Our sample policy ensures that the OMICRON CMC 356 Relay Test Kit is handed over to customers in optimal condition, reflecting its premium market value. Widely available across India, it is distributed by trusted suppliers and traders, reinforcing its stature in the domestic market. Certified to IEC 61010, CE, and EMC standards, this relay test kit guarantees compliance and safety, enhancing user confidence and ensuring long-term reliability for industry professionals.

FAQ's of OMICRON CMC 356 Relay Test Kit:

Q: How do I connect the OMICRON CMC 356 Relay Test Kit to a PC for operation?

A: You can connect the CMC 356 to a PC using Ethernet, USB, or RS232 interfaces. A compatible PC and the OMICRON Test Universe software suite are required for control and data analysis.

Q: What types of relays can be tested with this kit?

A: The kit is suitable for testing electromechanical, static, and numerical relays, offering versatility for modern and legacy protection systems.

Q: Where can the CMC 356 be applied most effectively?

A: It is designed for both laboratory and field use, performing consistently in indoor environments or rugged field sites due to its durable, shock, and vibration-resistant build.

Q: What safety certifications does the OMICRON CMC 356 carry?

A: The device meets IEC 61010, CE, and EMC certification standards, ensuring top-tier safety during operation in power system environments.

Q: What are the advantages of the OMICRON CMC 356 in relay testing?

A: Users benefit from its high precision (<0.15% output accuracy), automatic protection features, wide application range, and programmable outputs, making testing processes efficient and reliable.
